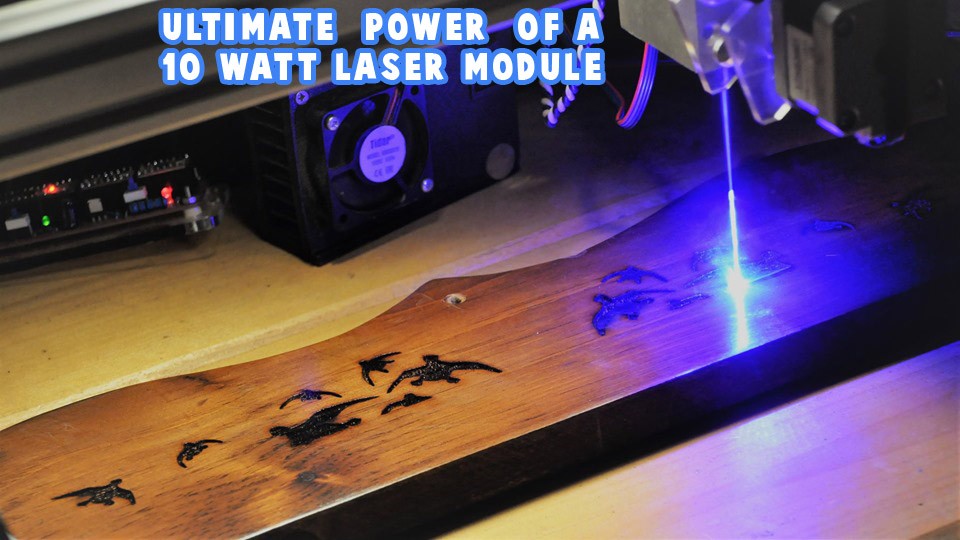

The Endurance 10 Watt (10000 mW) laser “Invincible” module (add-on) with 445 nm wavelength for any 3D printer / CNC machine

Card image
$595$795
- 26%
Till 12/09/2018

Are you looking for a quick and easy engraving/cutting tool?
Are you looking for an upgrade for your 3D printer or CNC machine?


Experience the true optical power output of a 10 watt Endurance laser attachment.
Add ultra abilities to your 3D printer or CNC machine.


no need to remove the extruder

Use the same slicers you always use: Cura, Repetier, Slic3r, Simplify3D or the CNC software: Mach3, etc.
To prepare a g-code use an the Endurance plugins or the T2Laser software.

Infinite Abilities Of This Diode Laser

Material Laser cutting Laser engraving
Stainless steel -
Copper and brass -
Ceramics - +
Aluminum
(painted and anodized)
- + (speed ~150-500)
Natural stone - + (speed ~150-400)
Glass - + (speed ~100-400)
Leather + (speed ~400-750)
Hardboard + 3-4 mm (single pass) + (speed ~500-1000)
Cardboard + 3-5mm (single pass) + (speed ~500-1000)
Paper + + (speed ~1000-1500)
Fabric + + (speed ~300-750)
Felt + + (speed ~300-750)
PVC + (speed ~500-750)
ABS + (speed ~500-750)
PLA + (speed ~500-750)
Acrylic + (speed ~350-750)
Wood / Plywood + (speed ~400-1500)

Independent laser cutting test results

Material - thickness Speed Laser power Amount of passes without a compressor Amount of passes with a compressor
Plywood 3 mm 30 100%
Plywood 4 mm 30 100%
Plywood 5 mm 30 100%
Plywood 6 mm 30 100%
Plywood 3 mm 50 100%
Plywood 4 mm 50 100%
Plywood 5 mm 50 100%
Plywood 6 mm 50 100%
Plywood 3 mm 100 100% 3 (no charring) 2 (no charring)
Plywood 4 mm 100 100% 4 (no charring) 3 (no charring)
Plywood 5 mm 100 100%
Plywood 6 mm 100 100%
Laser air assist

Air assist option with Hailea ACO-318

Add additional air assist to your laser for faster and better laser cutting & engraving

Hailea ACO-318 features:
  • Flow: 60 L/min (2.12 CFM)
  • Max Pressure: 0.2 bar
  • Noise Level: <60 dBA
  • Weight: 1.65 kg
  • Dimensions (mm): L 182 x W 95 x H 116
  • Power Consumption: 32 Watt @ 230v
  • Connections: Screw-in barbed, horizontal brass connector 8 mm OD
  • Accessories: Manifold kit with 6 outlets

Technical information

I bought the endurance 10

I bought the endurance 10 watt laser and can’t be more satisfied. The laser works great out of the box and is easy to install. I use a CNC to create burns from photographs – and the laser burns the exact picture. George answers questions promptly and really stands behind his product. This is a five star product.

Michael Rabin

I had a question setting

I had a question setting up my DIY laser to a Creality CR-10S 3D printer. George answers promptly (I mean really fast) and answers further if you need any help understanding.

Maurice

I Was really Excited to

I Was really Excited to get the Laser from George.
Now after 3 Weeks of playing around with the laser Im able to say, it is a realy great Laser. Which puched me forward in my production time. It is easy to install and to work with. For everyone who already got a 3D printer it this a really great attachement.
Also the support from George is the best customer support I know. If something doesnt work correct, he takes care of it, tries out different options in his lab and will come back to you with a solution. Very appreciate it.

Florian Kelsch

After 2 weeks of using

After 2 weeks of using this 10W laser module, i would give 5 stars to endurance laser for producing such a magnificent product. their commitment is very satisfying. Well done George!!!

Muhamad Ramizal

Having owned some cheap Chinese

Having owned some cheap Chinese lasers that never do what they say they will, I was a bit sceptical as to whether this laser would actually do what Endurance claim it would do. But anyway I went ahead and purchased the 10w version.
I had a few teething problems, most likely because I am new at laser cutting etc and although I have spent my entire working life in electronic assembly, I don’t actually understand a great deal about electronics, just the bare minimum!
Anyway these problems have all been sorted out via a very quick to respond and help customer support! Emails are answered within a very short time and they are very keen to problem solve and get you on the road to using your new laser to it’s best potential!
I am the co-owner of a small craft business and I am looking to use the laser to expand our products.

Alison Sinclair

After building my first personal

After building my first personal laser engraver almost a year and a half ago, Endurance Lasers contacted me about a 10 watt upgrade. I couldn’t refuse. Going from a cheap Chinese “2.5 Watt” laser to this true 10 Watt beast that can run continuously was incredible. This laser is so powerful and can do so much more. Check out my video to learn more about Endurance Lasers 10 Watt laser and how I installed it into my machine at BOS Studios. https://youtu.be/_6wY_eanebM

Logan Davis

Laser came in mail extremely

Laser came in mail extremely fast and in great condition. Was very easy to setup and looks professional! Definitely happy with my purchase and this product!

Matt

I was informed about Endurance

I was informed about Endurance Lasers by another company, T2Laser which produces laser software. I had a great experience with T2Laser so I thought if they were recommending Endurance Lasers, then it would be worthwhile. I had looked at other lasers over the years, but the most powerful were 3.8 W. I wanted something more powerful. As soon as I contacted George at Endurance, he was very informative and helpful. I really focus on customer service with companies when I buy something, so I wanted to see how he responded to questions. He responded quickly and very thoroughly. I liked that he gave me a personal response each time tailored to my needs. I purchased the 10W laser and as I went through the setup, Endurance Lasers answered every question I had and even looked over my electronics to make sure their product would work with it properly. I’m fully functioning with the 10 W laser and even though I had more complex setup than typical, I was functioning within a day of beginning the installation, which took very little time at all (2 hours total time). Thanks! Will be purchasing more in the future!

Mike Poling

my 10w lazer is fantastic

my 10w lazer is fantastic still in the testing stage will cut through 3mm ply 3 passes at 20/255 and 5 passes 200/255 with home made air assist well worth the money well done endurance

chris

Are you item owner? Share your opinion, please.

Laser Type
Nichia diode
Laser Optical Power Output
10000mW ± 15%
Focal Length
2-10 cm (variable) for 3 element lens | 2-10 mm (variable) for G2 lens
Laser Wavelength
445 nm
Lens Type
3 element long focal lens / G2 short focal lens
Operation Time
Tested 48-72 hours continuous
Voltage
9-24V DC
Current
5-8 Amps
Cooling
Active air blowing with 4 fans
Mount
Ultra compatible and universal
Installation Process
Full guidance
Minimum Laser Pixel (spot) Size
0.1 mm (100 uM)
Power adjustment
Endurance MO1 PCB
Laser Dimensions (W x L x H)
60 x 95 x 60 mm (2.4 x 3.7 x 2.4)''
Laser Weight
216 g (1/2’’ lbs)
Laser Driver
External laser control box
Lifetime
10 000 hours
Maintanance
Is not required
Additional power
Required for fans


About laser driver & laser control board


Laser driver is one of the most important component in the laser module. Laser driver controls the voltage and the current that goes to the laser diode itself. It is important so that the laser driver sets and keeps the voltage and the current stable. It keeps the laser diode safe.

We add Zener diode as an additional laser diode protection.

TTL wire / wires are also added to the laser driver. With TTL (3.5 - 12V range) you may change laser power (duty ratio). For 10 watt laser we use special tuned and setup step down (buck) DC/DC converters with a current stabilizer. A buck converter (step-down converter) is a DC-to-DC power converter which steps down voltage (while stepping up current) from its input (supply) to its output (laser diode).

All Endurance drivers / laser control boards are very reliable and been tested before shipment.

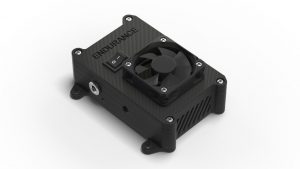

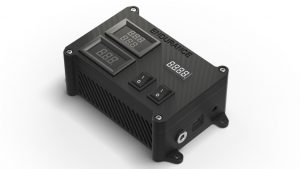

Laser box

Laser box is an excellent add-on for you laser module. You may use laser box as a laser driver / laser control board. It means that you may wire laser diode directly to the laser box output.

Laser box measures:
- incoming voltage
- outgoing voltage and current to the laser diode
- temperature of the heatsink (after temperature sensor is installed into the heatsink.

Laser box has 3 options of operation:
- Full power (does not require connection to the main board).
- TTL control (requires connection to the main board).
- Arduino setup power (requires Arduino connection).

Setting up laser box
- Adjusting the power (duty ratio) and the frequency of Arduino.
- Changing the voltage and the current on a DC/DC converter.

What is so great about the Endurance 10 watt laser?

  • 4 fans and big heatsink cool the diode efficiently
  • Well tuned laser control board keeps diode safe and brings 10 watt optical power output
  • 2 switch position: TTL mode / 100% output

Everything that you need to know about Endurance accessories.

Goggles
always wear red or green goggles when you operate the laser. Remember Endurance lasers are class 4 item and must never be aimed in any live specie.
G2 lens
short focal lens with focal range 2-10 mm (1/10 - 2/5’’) a necessary accessory for laser cutting or laser engraving on metals.
Endurance MO1 PCB
an electronic board that allows feed the laser from external power supply (needed when your main board does not have enough power output)
Laser connectors
variety of a different wires and connectors that will be useful when you plug the laser to your board.
Laser mounts
aluminum mounts that will help you to hook the laser to you machine. 4 types with M3 screws: L, П, I, T.
Laser actuator
a Z axis actuator that will help to change laser position on Z axis. Is a good option for XY plotters with no Z-axis mechanism.
AC/DC 12V5A
an additional power supply for Endurance lasers.
AC/DC 12V1A
an additional power supply for 10 watt laser fans.
Step down DC/DC converter
a DC/DC converter that decreases the voltage down to required 12V for Endurance lasers.
Endurance laser box
is a nice gadget (add-on) for your laser module to measure incoming voltage, outcoming voltage and current on a laser diode, laser driver module, Endurance MO1 PCB, temperature sensor and Arduino board for changing laser power.
Arduino board with the Endurance sketch
allows changing laser power (duty ratio) and a frequency of the laser. Can change the laser into impulsive mode.
Temperature sensor
additional temperature sensor for monitoring of a laser temperature.
Voltmeter
additional voltmeter for measuring incoming voltage.
Voltmeter & ammeter
additional voltmeter & ammeter for measuring outcoming voltage and current that goes to the laser diode.
DIY checking pin kit
a full it that will help you to check pins on your board, laser power, etc.
Air pump
laser addition that allows blowing the air to the place of laser cutting / laser engraving. Increases speed of a laser cutting up to 50% and reduce charring.
TEC module
Peltier cooling system for better laser cooling (increases power up to 10%).
The laser does not work
Please, check the power adapter’s (voltage & current) performance. Connect the TTL wire to the 12V+ to test if the laser is working. It should work full power. Watch this video.
The laser works full power but the laser power cannot be changed
Please check the g-code parameters (S / L) used for the pin to change the power. Either your PWM does not change the duty ratio or the contact of any of the laser connectors (if you run without TTL) is broken. Check with the voltmeter and ammeter if the voltage on this pin changes. Watch a video about TTL signal. Arduino with TTL.
I did everything as described but the laser does not work
We need to see a detailed photo and video of what you have done to help you with further steps.
Sometimes 13N10 or LM338 die and need to be replaced. We will guide you how to do that.
Endurance MO1 PCB does not work
The Endurance MO1 PCB is a quite a simple circuit and works pretty stable, however, there is a simple way to check it out. (described on this page + video guidance)
How do I find a proper pin to connect the laser?
We provide an ultimate guidance and tutorials. The laser is usually connected to the fan output on 3D printers or spindle output on CNC machines or can be connected to any other pin that is controllable, such as: D11 on the Arduino Nano. Detailed pinouts you may find here.
The laser lost its power.
The probability that this might happen is 5%. It might happen due to overheating. Avoid the laser diode and laser control board overheating. Check the temperature of the heatsink or laser driver. They must not be VERY hot (if you can touch these elements and hold on – it means that the temperature is less than 70C). If the temperature rises too high we can guide you how to reduce the voltage going to the laser diode and causing the loss of power.
I am trying to cut 3-5mm plywood using the laser, however I still did not manage to cut it with a single pass. Please assist
0. use a G-2 lens for laser cutting.
1. setup a perfect focus on a G-2 lens (make sure that focal range is something like 4-8 mm)
2. make sure that a plywood is very dry (you may use a 3D printer bed to warm it up)
3. speed parameters should be 50-150 in your g-code
4. make sure that the plywood is not specially treated with anti-inflammable materials
5. make sure that the laser runs full power and you have enough power that goes to the laser
6. make sure that the lens is clean and has no dust on it.
The Endurance 10 Watt (10000 mW) laser “Invincible” module (add-on) with 445 nm wavelength for any 3D printer / CNC machine

Did you miss Cyber Monday sale?! We have a few units left. Last chance


Cyber Monday





Our customer support rating



About the 10 watt laser

The Endurance 10 Watt (10000 mW) laser “Invincible” module (add-on) with 445 nm wavelength for any 3D printer / CNC machine brings ultra abilities to your 3D printer or CNC machine. The laser Optical Power Output is 10000mW ± 15%. Has a TTL enabling to change the laser power output.

Power supply

A 10 watt laser supports 9 – 24 volts. There is no need for an additional power converter.

Laser cutting and laser engraving for home and for business.

Advantages of Endurance lasers


High-quality standard

Multi-level testing system.
Industrial components.


Ultra reliable

The guaranteed duration of the continuous operation ~48-72 hours.


True continuous power output

Our products have the rated power output as advertised – unlike Chinese analogues.


TTL mode

Can be turned on and off with 3.5-12V.
Variable power output.


Plug and play

Universal and compatible mount.
Compatible with most 3D printers and CNC machines.


Friendly return policy

Do not like the laser?
Simply return within 14 days and get a full refund.

Laser attachments and laser engraving (marking) machines.

Why do our customers buy lasers and engraving machines from Endurance?


Real-time advice

We assist and give advice by phone / email / messenger / telegram / whatsapp / viber.


Professional support

We help to install and tune the laser. We offer qualified after-sales support.


Everything you need

We ship everything you need in one parcel to get started.


Immediate delivery

We ship all units within 4-24 hours.


Lifetime warranty

All our lasers are tested and could work up to 10000 hours.


Upgrade option

Do you have an old model? Upgrade your unit with more powerful one.

Compatible 3D Printers and CNC Machines

Anet
Anycubic
Creality Cr-10
Eleksmaker
Lulzbot
MakeBlock
Makerbot
MillRight CNC
Monoprice
Openbuilds ACRO
Prusa i3
Reprap
Shapeoko 3
Ultimaker
WanHao
X-Carve
Tevo 3D
FlashForge

Learn more about compatible 3D printers / XY plotters and CNC machine

The Endurance 10 Watt (10000 mW) laser "Invincible" module (add-on) with 445 nm wavelength for any 3D printer / CNC machine

A 10 watt laser installed on an Eleksmaker DIY engraving machine

Anodized aluminum engraving and engraving on special CO2 aluminum plates. An Endurance DIY engraving machine (Eleksmaker board)

Our customers make & share.



Join our facebook community

The Endurance 10 Watt (10000 mW) laser "Invincible" module (add-on) with 445 nm wavelength for any 3D printer / CNC machine

Was made by Michael Rabin.

10 watt laser on a MakeBlock XY plotter

Engraving on the glass. Making wedding gifts.

Plywood laser cutting by Florian Kelsh

Metal etching guidance using Endurance 10 watt laser

One before cleaning of the Dry Moly Lube and one after.
Used the 10W Laser.
3mm/s and Crosshatch Scanning with One pass.

How to install the Endurance 10 watt laser on an Ultimaker 3D printer

They use it in their business and hobby.

wood is engraved with the Endurance laserThe Endurance 10 Watt (10000 mW) laser "Invincible" module (add-on) with 445 nm wavelength for any 3D printer / CNC machine

The Endurance flagship 10 watt (10000 mW) diode laser module.

Why to choose the Endurance 10 watt laser?

  • We deliver everything you need to get started.
  • The “Invincible” laser enables to create incredible things with your 3D printer / CNC machine.
  • Unlike many Chinese lasers the Endurance 10 watt laser can work continuously up to 48-72 hours. Its lifetime is about 10 000 hours.
  • Its real rated optical power output of is 10 watt (10000 mW).
  • Endurance provides an ultimate customer support with full guidance and tutorials.

10 watt laser mount on a rail with z axes

Galleries of the product

Design of the 10 watt (10000 mW) Endurance laser

Laser cutting with a 10 watt laser

Laser engraving with a 10 watt laser

Measurements of the 10 watt laser power consumption

Thee installation process of a 10 watt laser on ANET 3D printer

Running of a 10 watt laser on a DIY engraving machine

Samples of engraving and cutting

Can you make something better?
Share with us your samples or…

Laser control board (basic version)

Laser control board

  • Stabilizes current and voltage
  • Enables to operate the laser: full power / TTL control
  • Protects the laser diode from an unexpected voltage jump

Laser box (optional)

Laser box

  • Stabilizes current and voltage
  • Enables to operate the laser: full power / TTL control
  • Protects the laser diode from an unexpected voltage jump
  • Measures the laser temperature
  • Measures the incoming voltage and outgoing voltage & current
  • A Programmable Arduino board: allows to set up the power (duty ratio) & laser beam frequency (impulsive mode)

Upgrade your laser with an air assist (pump)

The Endurance 10 Watt (10000 mW) laser "Invincible" module (add-on) with 445 nm wavelength for any 3D printer / CNC machine

  • Increases laser cutting speed
  • Reduces charring of edges
  • Enables deeper laser cutting
The Endurance 10 Watt (10000 mW) laser "Invincible" module (add-on) with 445 nm wavelength for any 3D printer / CNC machine
The Endurance 10 Watt (10000 mW) laser "Invincible" module (add-on) with 445 nm wavelength for any 3D printer / CNC machine



Our customer experience with a 10 watt laser



Got a question?

  1. (required)
  2. (required)
  3. (please, enter a valid email)


10 watt Endurance laser full parcel

Technological advantages of the Endurance lasers

  • Stylish industrial design using light aluminum.
  • Effective cooling system with a custom developed heatsink.
  • True constant power output checked every time before shipment.
  • Very efficient and reliable laser control board.
  • Compatible mounts with most 3D printer & CNC machines.
  • Adjustable laser power via TTL.
  • Preset and tested laser focus.
  • Additional protection of the laser diode.

Add an accessory for your laser

  • Air pump Hailea ACO-318 for cleaner cutting and engraving (less charring).
  • Arduino board for changing a duty ratio (laser power) and frequency (periods of on/off position).
  • TEC cooling system for better laser cooling (increases power up to 10%).
  • Additional metal mounts (easier to hook and mount).
  • Additional laser connectors (all compatible mounts for the main board).
  • Temperature sensor to control the laser temperature.
  • Wi-Fi camera to monitor the laser operation remotely.
  • Voltmeter + ammeter to monitor the laser power consumption in a real time.
  • Additional step-down “buck” DC/DC converter to run 2.1W, 3.5W, 5.6W, 8W, 8.5W lasers from 24V pin.
  • The Endurance MO1 PCB to feed the laser from an external power source.
  • G2 (short focal) lens for better and faster laser cutting and metal engraving.

Endurance provides the best tech support for our customers.

1. Prompt responses explaining about how to connect the laser to your 3D printer/CNC machine or XY plotter (Whatsapp, Viber, Telegram, Facebook messenger, Twitter, Skype, E-mail).
2. Detailed guidance to prepare a G-code for laser cutting/laser engraving (video playlist).
3. Friendly and dedicated Endurance facebook community.
4. Immediate troubleshooting. Remote help with measurements and necessary tests (video call + TeamViewer).
5. Lifetime warranty on all Endurance lasers.

Why Endurance lasers?

1. Ultimate and promt tech support.
2. Rated and continous high power lasers.
3. Reliable and lifetime warranty.
4. Advanced experts community.
5. Friendly facebook group.
6. Fast and secure delivery.
7. Big library with detaliled guidance and tutorials.
8. Research and donation programs with universities all over the world.
9. Simplified customs clearance procedure.
10. Certified product.
11. Free plugins for g-code preparation.
12. And… more than 1,7K customers already chose Endurance lasers.

Our customers make and share their project with us.

The Endurance 10 Watt (10000 mW) laser "Invincible" module (add-on) with 445 nm wavelength for any 3D printer / CNC machineThe Endurance 10 Watt (10000 mW) laser "Invincible" module (add-on) with 445 nm wavelength for any 3D printer / CNC machine

2x laser beam. Do you know that you can double your laser power?

If you already have a laser: 5.6 watt, 8 watt, 8.5 watt, 10 watt.

  • Get a second laser to convert your laser into a 2x laser attachment.
  • Get a free aluminum platform and special off on the Endurance 10 watt laser.
  • Install both lasers and focus them at one spot. Get more power out of 2 lasers at a time.

CNC makers and hobbyists are welcome

Special mounts and laser connectors for MPCNC, Stepcraft, X-carve, Shopbot, CNC Router Parts, GarageWorx, Shapeoko, Laguna, CaMaster, Axiom, Shop Sabre, Probotix CNC machines.
A strong and friendly CNC laser community with advanced skills and knowledge.

In the parcel

We ship everything you need to get started. It will take 5-15 minutes to mount and wire the laser to your 3D printer or CNC machine.

Plug and play

All Endurance lasers are plug and play. Just mount the laser to the spindle or extruder without removing them. Connect wires to the fan/spindle/laser pin on your board.
Use the same software, just generate a g-code and run the laser from your computer or SD card.

Certification

IN 4Q 2018 we passed a certification procedure in Russia.
Our certificate (PDF)

Tests and proof of work

All Endurance lasers are assembled and tested manually which reduces the risk of failure. Every single laser is been tested before shipment on a special testing stand.

Taxes and duties

All prices include all sales taxes but do not include import duties.
However, in 98% shipments our customers do not pay any additional taxes or customs duties. We fill all papers carefully for each country following regulations and importing rules.

Support & help desk (pinouts inquiry)

Get an instantaneous help over any messenger indicated at the top and bottom of the page (under phone numbers).

Laser safety and security

laser goggles
Your safety and security is our top priority. All Endurance lasers are shipped with protective goggles. Operating lasers wearing protective goggles is secure and harmless.
However, if you want an additional protection you may add an acrylic plate or window to your 3D printer or CNC router. It should be made out of black, green or red acrylic. It will not let the laser light go out and will make the laser operation more comfortable.
Keep in mind that Endurance lasers do not affect 3D printer bed so no additional protection is required.
All Endurance lasers are class 4 lasers.

Keywords: 3D printer, speed, 10 Watt laser, blue laser, diode laser, attachment, add-on, accessory.

Key concepts: СNC machine, laser optical power, speed of engraving, size of cutting, 3d printer attachment, 3d printer upgrade, cnc machine add-on.

Support and guidelines

Important Notes

  • You need 2 separate power adapters: 12V a 5-7A adapter for the laser and the other - 1A for the fans.
  • Check the focus of the laser: tune the focus accurately for a G2 lens (the optimal range is 6 mm [1/4'']) .
  • The laser has an external power supply. Connect it to your Fan / Spindle / Laser output pin on your board.

Compatibility and installation process.

  • The Endurance 10 watt laser can be installed on any 3D printer and CNC machine.
  • Does not require additional mounts, connectors.
  • Ready to go in 15 minutes after you get it.

Useful manuals

Useful videos

Laser connection diagram for 10 Watt item

Basic manuals

Share your opinion and evaluate the product
Leave your feedback now

Required field
