Thr Endurance CNC 3018 laser engraving / cutting machine / carving machine

A unique solution from Endurance: CNC 3018 machine + laser cutter + laser engraver.

  • Mark and cut material with a spindle and with a powerful solid-state laser.
  • Great solution for home and a small workshop.
  • Milling cutter can cut and mark on a white and soft materials and laser can better engrave and cut on dark and solid materials like acrylic, glass, aluminum, brass and stainless steel.
  • We use CNC 3018 model as a basic milling frame and we install our powerful lasers on it.

Endurance CNC 3018 machine is an excellent Carving Mini Engraving Router PVC + laser engraving / cutting addition with 2.1W / 3.5W / 5.6W / 8W / 8.5W / 10W / 10 watt PLUS / 4 & 10 watt DPSS lasers.

You May Cut and Engrave Using Endurance CNC 3018 combo mill + laser unit

  • wood / plywood
  • acrylic
  • PLA / ABS
  • felt / fabric
  • paper / cardboard
  • hardboard / MDF
  • foam
  • fiber cloth / leather
  • stone
  • glass
  • and more

Laser marking on metalic surfaces is possible using 8.5 watt / 10 watt laser with special engraving paste.
Working Area
12 x 7 x 2 inch (300 * 180 * 45mm)
Software
GRBL (0.9 / 1.1H), easy to use.
Supported materials
ABS, PLA, TPU, Luminescent, Nylon PVA, PP.
Spindle:
(12-36V) 24 V - 7000 r/min,36 V - 9000 r/min.
Supported system:
Win XP / Win7 / Win8 / Linux.
Suitable for carve:
wood, plastic, acrylic, PCB CCL, soft metal like copper and aluminium and other materials
Engrave and cut
variety of materials depending on a laser type.
Can do laser cutting and laser engraving
up to 8 mm of wood/plywood and acrylic.
Movable Z-axes
Allows to keep laser always in focus
Spindle Chuck:
3.175 mm
Step motor:
Fuselage length 34 mm, Current 1.33 A, 12v. Torque 0.25 N/m
Drill bits:
tip 0.1 mm, 20 degree, diameter 3.175 mm (Contains 10 pcs)

No installation process is required. Create a g-code and run it on your machine.

This machine can be used as laser engraving and cutting machine + milling device. Just put the piece you want to cut or engrave onto the worktop and start the engraving or cutting process. Run the process and enjoy watching the machine do its job.

Requires prepared g-code to run the machine
$595
with a 2.1W laser
$695
with a 3.5W laser
$895
with a 5.6W laser
$995
with a 8W laser
$1095
with a 8.5W+ laser
$1195
with a 10W laser
Do not miss our current discount!

Proceed with the purchase and get the best price!



An Upgraded 3018 CNC Machine With Powerful Endurance Laser

Fiber laser upgrade package: PWM control box + focusing system



30 / 50 watt fiber laser sources for your 3D printer / CNC or engraving machine



Compatible with all diodes and DPSS laser modules.

15 watt DUOS laser on SainSmart Genmitsu CNC 3018



15  watt (15000 mw) laser installation process



Installing the Endurance 15 watt DIY DUOS on CNC 3018 – a detailed video guide



Laser beam combiner installation

Endurance 10 watt SE installation





An Endurance 10 watt DPSS laser module (Nd:YAG) was installed on a CNC 3018 machine



CONNECTING A 4W DPSSL TO CNC 3018



15 watt DIY DUOS laser installed on a Genmitsu CNC 3018 by Sain Smart



An affordable laser machine for your business – mark, cut/engrave & make photo images.



A DIY PCB. Make your own PC board with the DPSS laser.



More impressive results – photoengraving on PLA plastics, 5 mm glass laser-cut, 6 mm acrylic (plexiglass) engraving with 4/10 watt DPSS laser

Metal engraving using CNC 3018 machine

Watch a detailed video lesson!



PLA plastics engraving using a 10 watt Delux laser with a G2 short focal lens

All you need to know about how to do a laser engraving on PLA.



Cutting of mirror using 10-watt (10000 mw) DPSSL – parameters, settings.

1.8 mm (1/14”) regular (window) glass (BK7) cutting – complicated shape



Glass laser cutting with 10-watt DPSSL and short focal (f=20 mm) laser lens

AN AMAZING RESULT!



Sapphire glass laser cutting on CNC 3018 machine

Cut 0.5 mm of sapphire glass with the laser





DIY PCB Making with 4 watt (4000 mw impulse) DPSSL installed on CNC 3018 frame

https://www.instructables.com/Experiment-on-Engraving-Conductive-Tracks-on-a-Cop/



Color engraving on the sapphire glass with Nd:YAG 1064 nm laser (impulse infrared)

https://www.instructables.com/Experiment-on-Applying-a-Color-Image-to-Sapphire-G/



Explore the ultimate ability of laser cutting and laser engraving.



Thr Endurance CNC 3018 laser engraving / cutting machine / carving machine



A unique solution from Endurance: CNC machine + laser cutter + laser engraver. This machine can be used as laser engraving and cutting machine + milling device. Requires prepared g-code to run the machine.

Explore SainSmart online store >>>



Laser cutting and laser engraving for home and for business
Advantages of Endurance lasers


High-quality standard

Multi-level testing system.
Industrial components.


Ultra reliable

The guaranteed duration of the continuous operation ~48-72 hours.


True continuous power output

Our products have the rated power output as advertised – unlike Chinese analogues.


TTL mode

Can be turned on and off with 3.5-24V.
Variable power output.


Plug and play

Universal and compatible mount.
Compatible with most 3D printers and CNC machines.


Friendly return policy

Do not like the laser?
Simply return within 30 days and get a full refund.



Laser attachments and laser engraving (marking) machines
Why do our customers buy lasers and engraving machines from Endurance?


Real-time advice

We assist and give advice by Phone / Email / Facebook messenger / Telegram / Whatsapp / Viber.


Professional support

We help to install and tune the laser. We offer qualified after-sales support.


Everything you need

We ship everything you need in one parcel to get started.


Immediate delivery

We ship all units within 4-24 hours. DHL express delivery allows you to get the package in 3-5 days.


Lifetime warranty

All our lasers are tested and could work up to 10000 hours.


Upgrade option

Do you have an old model? Upgrade your unit with more powerful one.

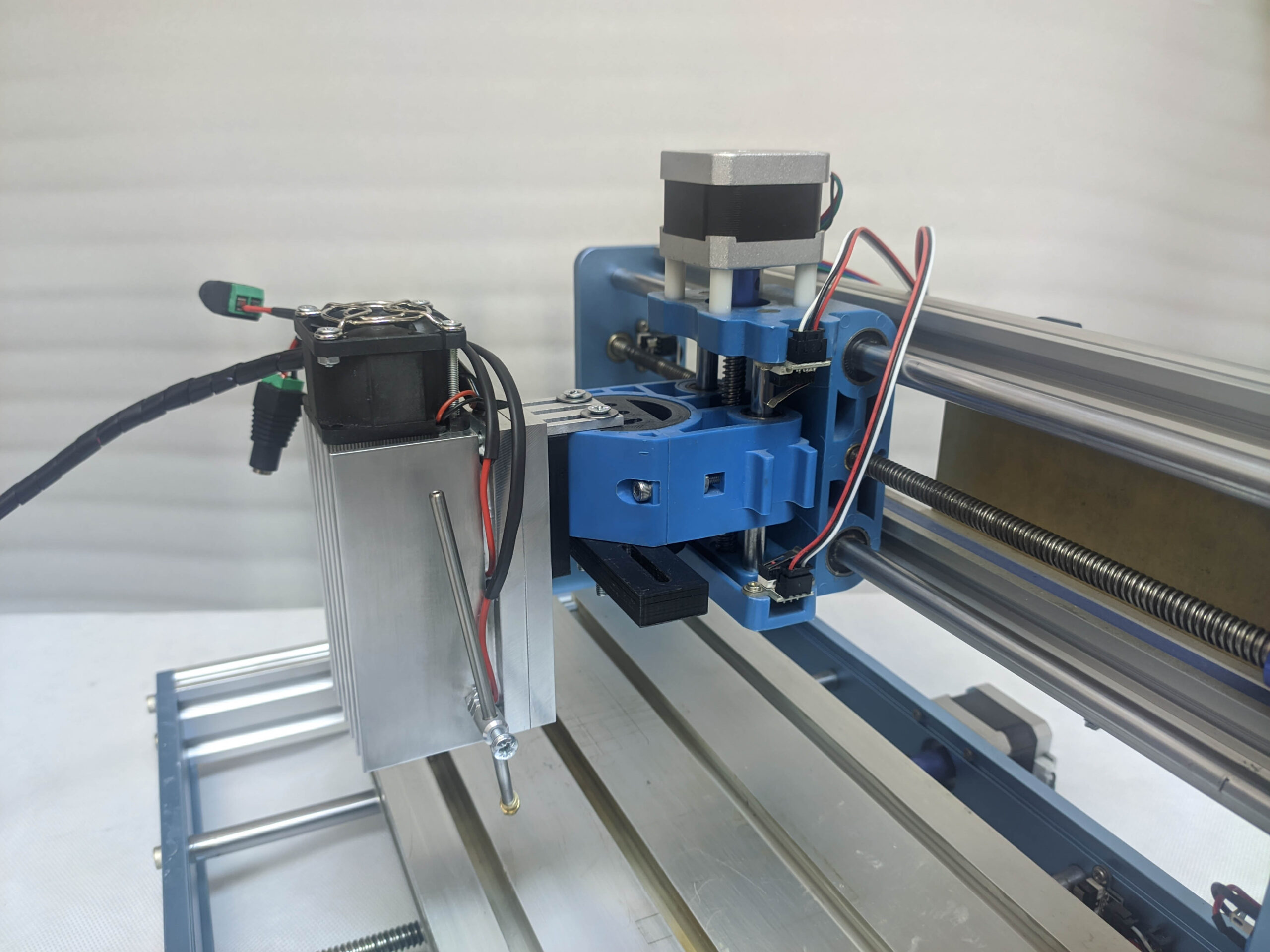

Product photo. Installed laser on CNC 3018 machine.

Mounting the laser (all mounts)



Free STLs for mounting the laser to CNC 3018. Alternative mount for an air nozzle by Endurance lasers ver. 1

https://www.thingiverse.com/thing:4906682



Running an Endurance CNC 3018 machine – live demo. Everything you need to know.

Thr Endurance CNC 3018 laser engraving / cutting machine / carving machine

Replacing a control board with a Makerbase MKS DLC board. Compatible with GRBL 1.1H / 1.1E / 1.1F

Upgrade your CNC 3018 with a more advanced laser control board – fully compatible with Lightburn software.

Download GRBL firmware for CNC 3018! | GRBL_1.1H

An important things you need to know about GRBL parameters, firmware settings





Adding a rotary system on a CNC 3018 machine – everything you need to know!



Getting started with an Endurance CNC 3018 combo unit



Introduction to CNC for a Total Novice – Setting up an Endurance Laser on a 3018 V1.0 (PDF guide book)

Introduction to CNC for a Total Novice – Setting up an Endurance Laser on a 3018 V1.0 (STL files)



Keep in mind that to turn on / off the laser you must use commands M3 and M5.





Installing a 10 watt DPSS laser module on a CNC 3018 machine



Upgrading Chinese lasers with an Endurance air nozzle ver 2.0. A full guide.



Samples of engraving and cutting
Can you make something better?
Share with us your samples or…



Installing an Endurance 10 watt «Delux» laser on a Sain Smart CNC router (Genmitsu)
