An Endurance 10 Watt+ (10000 mW) laser “Invincible plus” module (add-on) with 445 nm wavelength for any 3D printer / CNC machine

Card image
$795$995
- 21%
Till 08/17/2018

Are you looking for an upgrade for your 3D printer or CNC machine?
Do you want to do laser cutting and laser engraving?


Get an incredible experience with an Endurance 10 watt+ laser add-on.
Engrave on metal, wood, plywood. Cut wood, plywood and acrylic up to 8-10 mm thick as if with a CO2 laser.

no need to remove the extruder no need to remove the spindle

Infinite Abilities Of This Diode Laser

Material Laser cutting Laser engraving
Stainless steel -
Copper and brass -
Ceramics - (some samples can be cut) +
Aluminum
(painted and anodized)
- + (speed ~150-700)
Natural stone + + (speed ~150-500)
Glass 1 mm + (speed ~100-400)
Leather + (speed ~500-750)
Hardboard + 3-5 mm (single pass) + (speed ~500-1000)
Cardboard + 4-5mm (single pass) + (speed ~500-1000)
Paper + + (Max speed of your machine)
Fabric + + (speed ~450-1000)
Felt + + (speed ~450-1000)
PVC + (speed ~500-1000)
ABS + (speed ~500-750)
PLA + (speed ~500-750)
Acrylic + (speed ~500-1000)
Wood / Plywood + (speed ~500-1500)

Independent laser cutting test results for 10 watt laser with air assist

Material - thickness Speed Laser power Amount of passes without a compressor Amount of passes with a compressor
Plywood 3 mm 30 100%
Plywood 4 mm 30 100%
Plywood 5 mm 30 100%
Plywood 6 mm 30 100%
Plywood 3 mm 50 100%
Plywood 4 mm 50 100%
Plywood 5 mm 50 100%
Plywood 6 mm 50 100%
Plywood 3 mm 100 100% 3 (no charring) 2 (no charring)
Plywood 4 mm 100 100% 4 (no charring) 3 (no charring)
Plywood 5 mm 100 100%
Plywood 6 mm 100 100%
Laser air assist

Air assist option with Hailea ACO-318

Add additional air assist to your laser for faster and better laser cutting & engraving

Hailea ACO-318 features:
  • Flow: 60 L/min (2.12 CFM)
  • Max Pressure: 0.2 bar
  • Noise Level: <60 dBA
  • Weight: 1.65 kg
  • Dimensions (mm): L 182 x W 95 x H 116
  • Power Consumption: 32 Watt @ 230v
  • Connections: Screw-in barbed, horizontal brass connector 8 mm OD
  • Accessories: Manifold kit with 6 outlets

Technical information

Laser Type
Nichia diode
Laser Optical Power Output
10000mW ± 15%
Focal Length
2-10 cm (variable) for 3 element lens | 2-10 mm (variable) for G2 lens
Laser Wavelength
445 nm
Lens Type
3 element long focal lens / G2 short focal lens
Operation Time
Tested 48-72 hours continuous
Voltage
12V DC
Total Current Consumption (including TEC cooling)
~10 Amps
Cooling
60 watt TEC cooling with an advanced heatsink and high speed fans
Mount
Ultra compatible and universal
Installation Guidance
Full guidance
Minimum Laser Pixel (spot) Size
0.1 mm (100 uM)
Power adjustment
Endurance MO1 PCB
Laser Dimensions (W x L x H)
To be measured
Laser Weight
To be measured
Laser Driver
External linside the laser box
Lifetime
10 000+ hours
Maintanance
Is not required
Additional power
Required for Fans, TEC cooling, Laser box


About laser driver & laser control board


Laser driver is one of the most important component in the laser module. Laser driver controls the voltage and the current that goes to the laser diode itself. It is important so that the laser driver sets and keeps the voltage and the current stable. It keeps the laser diode safe.

We add Zener diode as an additional laser diode protection.

TTL wire / wires are also added to the laser driver. With TTL you may change laser power (duty ratio). For 10 watt+ laser module we use special tuned and setup step down (buck) DC/DC converters with a current stabilizer. A buck converter (step-down converter) is a DC-to-DC power converter which steps down voltage (while stepping up current) from its input (supply) to its output (laser diode).

All Endurance drivers / laser control boards are very reliable and been tested before shipment.

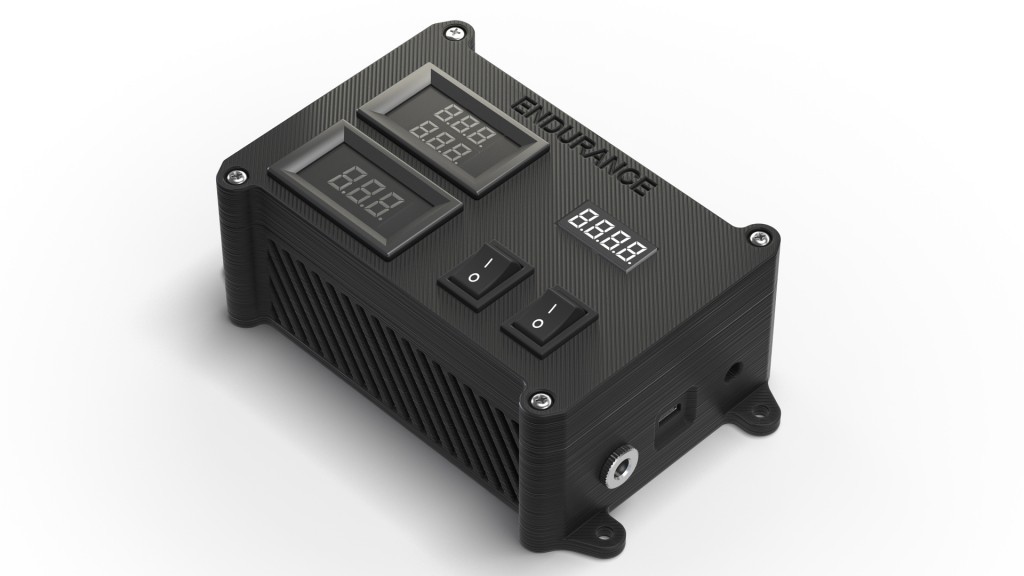

Laser box

Laser box is an excellent add-on for you laser module. You may use laser box as a laser driver / laser control board. It means that you may wire laser diode directly to the laser box output.

Laser box measures:
- incoming voltage
- outgoing voltage and current to the laser diode
- temperature of the heatsink (after temperature sensor is installed into the heatsink.

Laser box has 3 options of operation:
- Full power (does not require connection to the main board).
- TTL control (requires connection to the main board).
- Arduino setup power (requires Arduino connection).

Setting up laser box
- Adjusting the power (duty ratio) and the frequency of Arduino.
- Changing the voltage and the current on a DC/DC converter.

What is so great about 10 watt+ laser?

  • Stylish design
  • Light weight
  • Compatible with any 3D printer / CNC mill.
  • Easy to install and mount
  • Advanced electonic components

Everything that you need to know about additional Endurance accessories.

Goggles
always wear red or green goggles when you operate the laser. Remember Endurance lasers are class 4 item and must never be aimed in any live specie.
G2 lens
short focal lens with focal range 2-10 mm (1/10 - 2/5’’) a necessary accessory for laser cutting or laser engraving on metals.
Endurance MO1 PCB
an electronic board that allows feed the laser from external power supply (needed when your main board does not have enough power output)
Laser connectors
variety of a different wires and connectors that will be useful when you plug the laser to your board.
Laser mounts
aluminum mounts that will help you to hook the laser to you machine. 4 types with M3 screws: L, П, I, T.
Laser actuator
a Z axis actuator that will help to change laser position on Z axis. Is a good option for XY plotters with no Z-axis mechanism.
AC/DC 12V5A
an additional power supply for Endurance lasers.
AC/DC 12V1A
an additional power supply for 10 watt laser fans.
Step down DC/DC converter
a DC/DC converter that decreases the voltage down to required 12V for Endurance lasers.
Endurance laser box
is a nice gadget (add-on) for your laser module to measure incoming voltage, outcoming voltage and current on a laser diode, laser driver module, Endurance MO1 PCB, temperature sensor and Arduino board for changing laser power.
Arduino board with an Endurance sketch
allows changing laser power (duty ratio) and a frequency of the laser. Can change the laser into impulsive mode.
Temperature sensor
additional temperature sensor for monitoring of a laser temperature.
Voltmeter
additional voltmeter for measuring incoming voltage.
Voltmeter & ammeter
additional voltmeter & ammeter for measuring outcoming voltage and current that goes to the laser diode.
DIY checking pin kit
a full it that will help you to check pins on your board, laser power, etc.
Air pump
laser addition that allows blowing the air to the place of laser cutting / laser engraving. Increases speed of a laser cutting up to 50% and reduce charring.
TEC module
Peltier cooling system for better laser cooling (increases power up to 10%).
The laser does not work
Please, check the power adapter’s (voltage & current) performance. Connect the TTL wire to the 12V+ to test if the laser is working. It should work full power. Watch this video.
The laser works full power but the laser power cannot be changed
Please check the g-code parameters (S / L) used for the pin to change the power. Either your PWM does not change the duty ratio or the contact of any of the laser connectors (if you run without TTL) is broken. Check with the voltmeter and ammeter if the voltage on this pin changes. Watch a video about TTL signal. Arduino with TTL.
I did everything as described but the laser does not work
We need to see a detailed photo and video of what you have done to help you with further steps.
Sometimes 13N10 or LM338 die and need to be replaced. We will guide you how to do that.
Endurance MO1 PCB does not work
The Endurance MO1 PCB is a quite a simple circuit and works pretty stable, however, there is a simple way to check it out. (described on this page + video guidance)
How do I find a proper pin to connect the laser?
We provide an ultimate guidance and tutorials. The laser is usually connected to the fan output on 3D printers or spindle output on CNC machines or can be connected to any other pin that is controllable, such as: D11 on the Arduino Nano. Detailed pinouts you may find here.
The laser lost its power.
The probability that this might happen is 5%. It might happen due to overheating. Avoid the laser diode and laser control board overheating. Check the temperature of the heatsink or laser driver. They must not be VERY hot (if you can touch these elements and hold on – it means that the temperature is less than 70C). If the temperature rises too high we can guide you how to reduce the voltage going to the laser diode and causing the loss of power.
I am trying to cut 3-5mm plywood using the laser, however I still did not manage to cut it with a single pass. Please assist
0. use a G-2 lens for laser cutting.
1. setup a perfect focus on a G-2 lens (make sure that focal range is something like 4-8 mm)
2. make sure that a plywood is very dry (you may use a 3D printer bed to warm it up)
3. speed parameters should be 50-150 in your g-code
4. make sure that the plywood is not specially treated with anti-inflammable materials
5. make sure that the laser runs full power and you have enough power that goes to the laser
6. make sure that the lens is clean and has no dust on it.

Endurance presents a brand new 10 Watt+ diode laser.

About

An Endurance 10 watt+ “Invincible plus” laser is one of the most advanced diode (semiconductor) lasers on the market at the moment with a wavelength of 445 nm.

Advantages

An Endurance 10 watt+ “Invinsible plus” laser

5 key improvements comparing to 10 watt laser

– Added an air assist.
– A laser box replaced a laser control board.
– An advanced TEC cooling system.
– A big focusing ring for easy focusing.
– A poshed aluminum housing.

Technology

A laser box allows to monitor the temperature, voltage and current of the laser diode.
A TEC cooling system keeps the laser diode safe from overheating.

A big focusing ring allows to setup focus with less steps and make it more accurately.
A polished aluminum housing of the laser looks good to the eye.

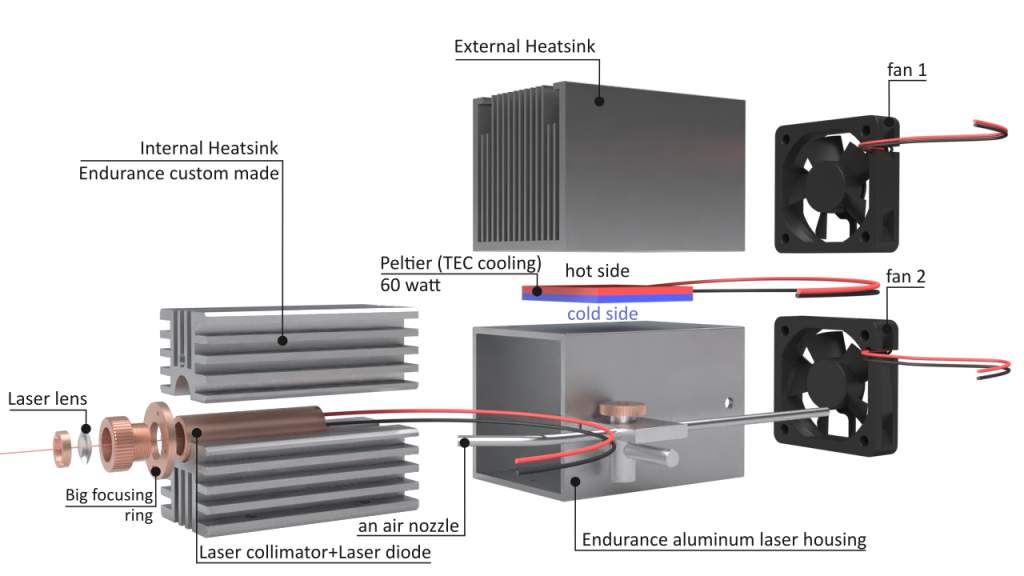

This is what the laser look like

Laser cutting and laser engraving for home and for business.

Advantages of Endurance lasers


High quality standard

Multi-level testing system.
Industrial components.


Ultra reliable

The guaranteed duration of the continuous operation ~48-72 hours.


True continuous power output

Our products have the rated power output as advertised – unlike Chinese analogues.


TTL mode

Can be turned on and off with 0-12V.
Variable power output.


Plug and play

Universal and compatible mount.
Compatible with most 3D printers and CNC machines.


Friendly return policy

Do not like the laser?
Simply return within 14 days and get a full refund.

Laser attachments and laser engraving (marking) machines.

Why do our customers buy lasers and engraving machines from Endurance?


Realtime advices

We assist and give advice by phone / email / messenger / telegram / whatsapp / viber.


Professional support

We help to install and tune the laser. We offer qualified after-sales support.


Everything you need

We ship everything you need in the parcel to get started.


Immediate delivery

We ship all units within 4-24 hours.


Lifetime warranty

All our lasers are tested and could work up to 10000 hours.


Upgrade option

Do you have an old model? Upgrade your unit with more powerful one.

Compatible 3D Printers and CNC Machines

Anet
Anycubic
Creality Cr-10
Eleksmaker
Lulzbot
MakeBlock
Makerbot
MillRight CNC
Monoprice
Openbuilds ACRO
Prusa i3
Reprap
Shapeoko 3
Ultimaker
WanHao
X-Carve
Tevo 3D
FlashForge

Learn more about compatible 3D printers / XY plotters and CNC machine

An Endurance brand new 10 watt+ (10000 mW) solid-state (semiconductor) laser add-on for any 3D printer and CNC machine.

Why do our customers buy a 10 watt+ laser?

  • • We deliver everything you need to get started
  • Very easy to convert your 3D printer / CNC router into laser cutting / engraving machine
  • Unlike most Chinese lasers and engraving machines an Endurance 10 watt+ laser can work continuously up to 48-72 hours. Has an extended lifetime of 10 000+ hours.
  • The Real rated optical power output is 10 watt (10000 mW).
  • Endurance provides and ultimate customer support on many languages.

Key components

A Laser Box

Endurance Laser box

  • Stabilizes current and voltage
  • Enables to operate the laser: full power / TTL control
  • Protects the laser diode from an unexpected voltage jump
  • Measures the laser temperature
  • Measures the incoming and outgoing voltage & current
  • A programmable Arduino board: allows to setup the power (duty ratio) & laser beam frequency (impulsive mode)

Our customer exeprience with 10 watt laser

Technological advantages of Endurance laser

  • Stylish and advanced industrial design.
  • Effective cooling system.
  • True constant power output.
  • Very efficient and reliable laser controller board.
  • Compatible mounts with most 3D printer / CNC machines.
  • Adjustable laser power.
  • Preset and tested laser focus.
  • Protection of the laser diode.
  • Better laser focusing.

Add accessory for your laser

– Air pump for cleaner cutting and engraving (less charring).
– Arduino for changing a duty ratio (laser power) and frequency (periods of on/off position).
– TEC cooling system for better laser cooling (increases power up to 10%).
– Additional metal mounts (easier to hook and mount).
– Additional laser connectors (all compatible mounts for main board).
– Temperature sensor allows to control laser temperature.
– Wi-Fi camera allows to monitor laser working remotely.
– Voltmeter + ammeter allows to monitor laser power consumption in a real time.
– Additional step down DC/DC converter allows to run the laser if your board has more than 12V power output.
– Endurance MO1 PCB allows to feed the laser from external power source
– G2 short focal lens for quick and convenient laser cutting.
– Kit for checking a proper pinouts.

Endurance provides the best tech support for our customers.

1. Promt responses about how to connect the laser to your 3D printer / CNC machine or XY plotter (Whatsapp, Viber, Telegram, Facebook messenger, Twitter, Skype, E-mail).
2. Full and detailed guidance of how to prepare a G-code for laser cutting / laser engraving (video playlist).
3. Friendly and dedicated Endurance community.
4. Immediate troubleshooting. Remote help with measurements and necessary tests.
5. Lifetime warranty on all Endurance lasers.

Support and guidelines

Important Notes

  • You need 2 separate power adapters: 12V 5A for TEC cooling & fans + 12V 5A for laser box.
  • Check the focus of the laser: tune the focus accurately for G2 lens (optimal range is 6 mm [1/4'']) .
  • Check the schematics of your electronic control board to connect the laser throught the laser box.

Compatibility and installation process.

  • Endurance 10 watt+ laser can be installed on any 3D printer and CNC mill.
  • Does not require additional mounts, connectors.
  • Ready to go in 15 minutes after you get it.

Necessary manuals

Laser connection diagram for 10 Watt+ item
