An Endurance Brand New DPSS Laser Module For Metal Marking & Metal Cutting!

An Endurance 10 watt DPSS Nd:YAG 1064 nm infrared impulse laser head

A professional laser head for metal marking / engraving.

Engrave and mark all types of metals with an Endurance 10 watt DPSS laser module

Install the DPSS module on any 3D printer / CNC frame / Engraving machine / XY plotter.

Unlike most Chinese laser markers where you have a limited working area like 10×10-15×15 cm  (2.5 x 2.5” – 4 x 4”), you can install our DPSSL on any frame with an almost unlimited working area.



An industrial solution for metal marking / engraving from a reliable supplier



Do laser engraving & marking on all types of metals including aluminum, steel, stainless steel, copper, brass, tin, gold, and silver.



Adding additional letter on Apple Macbook using Endurance 10 watt DPSSL



Microlaser engraving – ultra-precision quality



Wood cutting / engraving. Metal marking (lighter)

Working on a tribute sign for military veterans. Lasered a test seal that is 1 of the 5 branches. The seals will be 5″ in diameter. Used the DPSS 10 watt on a painted aluminum blank.

Black wood (5.5 mm thickness) laser cutting with Endurance 10 watt DPSSL infrared 1064 nm laser

Laser mirror cutting – an innovative method



2D laser engraving inside transparent acrylic – create a beautiful image inside.

Lave silver engraving. A DIY silver ring.



Learn more about color silver engraving >>>



An innovative sapphire laser engraving.



Glass laser cutting (5 mm thickness) with 10 watt DPSSL and short focal (f=20 mm) laser lens



A very accurate and clean edge.

5 mm laser window glass cut



1.8 mm (1/14”) regular (window) glass (BK7) cutting – complicated shape



5 mm (1/5”) transparent mirror glass was perfectly laser cut



Sapphire glass laser cutting with infrared Nd:YAG DPSS laser.



Sapphire glass – heart shape laser cut



Color engraving on sapphire glass with no paint and with no chemicals

Learn more about sapphire color engraving >>>



Titanium color engraving (tint colors)

Everything you need to know about titanium color engraving >>>



In-depth metal engraving



Photo engraving on a thin aluminum sheet. Everything you need to know.



Laser engraving / marking on aluminum (anodized or painted), stainless steel and regular stainless!



Photoengraving on plastic cards



All you need to know about an Endurance 10 watt DPSS laser module.

Diode-pumped solid-state (DPSS) laser from Endurance lasers is a new type of solid-state laser, ultimate beam quality (20-200 microns) @20-200 mm focal range from the lens (3.25”) enables your 3D printer and CNC machine to mark and engrave on any metallic surfaces including steel, stainless steel, copper, brass, aluminum, and other alloys WITHOUT ANY ENGRAVING PASTE.



The Endurance DPSSL modules consist of a laser pump source, coupler, rare earth element doped special fiber (Nd:YAG), resonate cavity and other components including AC/DC (PSU).



The technical specifications and performance of high power DPSS laser are far better than the common solid-state
laser. Therefore, DPSSL is well agreed to be the new generation substitute of solid-state laser. Now it has already been widely applied in high accuracy laser cutting and laser engraving.



Getting started video with an Endurance DPSS laser.



Explore the abilities of an Endurance 10 watt DPSS laser module

Ultra accurate and fast metal engraving / marking.



Install a 10 watt DPSSL on your 3D printer or a CNC machine – compatible with almost all units.



More about photo laser engraving / marking on pure copper sheet.

Greyscale (halftones) available!



Install the DPSS laser on any CNC frame (3018 CNC example)



Thin metal cutting on your 3D printer.

Endurance 10 watt DPSS laser cuts up to 0.5 mm (500 microns) [1/50″] of aluminum, brass, copper with multi passes.



What you can see while metal cutting!



Cut metal with the laser like a professional.  More accurate compared to a plasma cutting.





Maximum metal cutting is 1 mm of steel (A284Gr.D USA | Fe37-3FN Europe classification)

Silver engraving. Laser tea spoon marking

An Endurance Brand New DPSS Laser Module For Metal Marking & Metal Cutting!

Laser engraving / marking jewelry



Laser cutting table parameters – thickness, speed, amount of passes.

Type of materialThickness, mmCutting edgesLaser cutting speed mm/minThe minimum amount of passesGuaranteed amount of passes
Copper0,2Perfect4011
Copper0,5Perfect512
Brass0,5Perfect512
Tin0,4Perfect2511
Aluminum0,5Perfect1012
Steel0,7Perfect523





Laser metal cutting examples



DIY PCB. Make your own board with the DPSS laser.



Kapton laser cutting with 10 watt DPSSL

Kapton is a polyimide film developed by DuPont in the late 1960s that remains stable (in isolation) across a wide range of temperatures, from −269 to +400 °C (−452 to 752 °F; 4 to 673 K). Kapton is used in, among other things, flexible printed circuits (flexible electronics) and space blankets, which are used on spacecraft, satellites, and various space instruments.





PCB laser cutting with a 10 watt DPSSL

Laser PCB Cutting machine. Great instrument for makers and industrial applications.



DPSSL has a maximum power of ~50-57 kW in an impulse mode

DPSS laser: Peak power, pulse duration, repetion rate, average power



Key benefits of an Endurance DPSS laser module

  • Ability to install on any 3D printer / CNC machine or XY Plotter.
  • High peak power enables accurate and deep engraving.
  • High laser engraving precision 20-200 um (microns).
  • High reliability of the laser module 10 000 hours.
  • Universal and compatible mounting bracket.

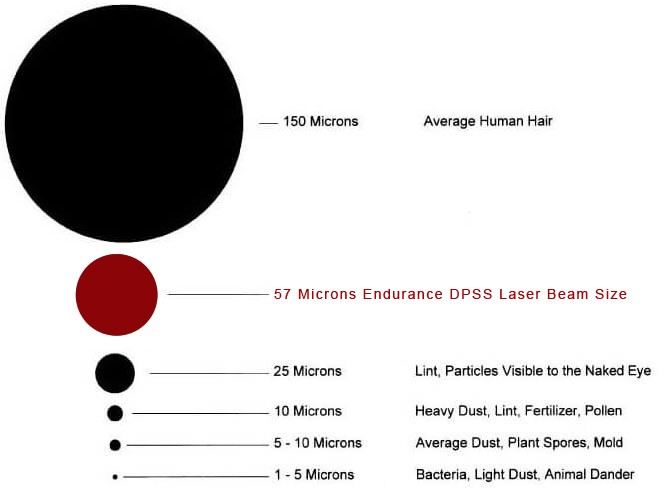

An Endurance DPSS laser beam spot size







An Endurance DPSS infrared 1064 nm (Nd:YAG) laser module with 10 watt power output.



All about DPSS laser beam focusing

Different laser lenses and spacers – “how to” video.

Endurance new optical system for 4 / 10 watt DPSS laser modules.

Now different lenses can be installed.
Variable laser beam spot (20-200 uM) and variable focus depth (1-100 mm)



An Endurance DPSS laser has a Gaussian laser beam distribution.

Endurance installs 2 types of lenses on a DPSSL.



F=20 mm (28 mm range between the lens and the laser)
Focusing range: 20 mm
Focal beam spot: 62 um (min power)
focal depth:  +10 mm

F=20 mm (30 mm range between the lens and the laser)

Focusing range: 35 mm
Focal beam spot: 160 um (max power)
Focal depth: +-30 mm
F=20 mm (50 mm range between the lens and the laser)
Focusing range: 32 mm
Focal beam spot: 80 um (max power
Focal depth: +-8 mm

F=20 mm (80 mm range between the lens and the laser)
Focusing range: 20 mm
Focal beam spot: 51 um  (min power)
focal depth:  +-0.75 mm

F=20 mm (130 mm range between the lens and the laser)
Focusing range: 19 mm
Focal beam spot: 39 um (min power)
focal depth:  +-0.5 mm



F=30 mm (28 mm range between the lens and the laser)

Focusing range: 35 mm
Focal beam spot: 45 um (min power)
Focal depth: +-8 mm

F=30 mm (80 mm range between the lens and the laser)

Focusing range: 33 mm
Focal beam spot: 35-36 um (min power)
Focal depth: +-5 mm

F=30 mm (100 mm range between the lens and the laser)

Focusing range: 45 mm
Focal beam spot: 58 um (max power)
Focal depth: +-4 mm

F=30 mm (130 mm range between the lens and the laser)

Focusing range: 33  mm
Focal beam spot: 25 um (min power)
Focal depth: +-2 mm

F=30 mm (150 mm range between the lens and the laser)

Focusing range: 37  mm
Focal beam spot: 38 um (max power)
Focal depth: +-1.8 mm





More examples of metal engraving / marking

Ultra-thin lines. Very accurate engraving / marking

(Accuracy depends on our machine frame). We suggest using high-precision CNC frames and 3D printers.





10 watt DPSS laser – live demo





Laser rust removal process



Paint removal (laser printer toner removal available)

DPSSL parameters

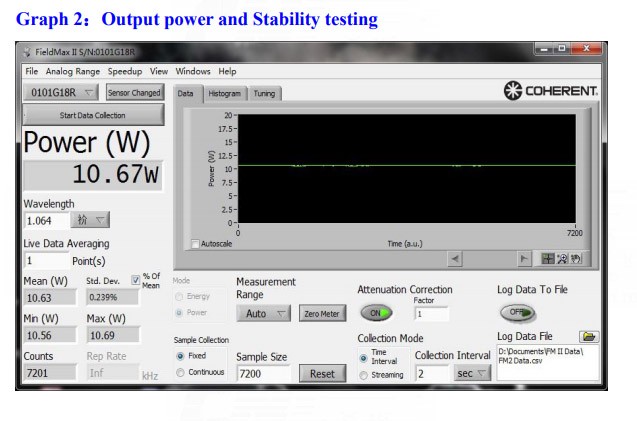

Laser energy pulse width Laser power measument

Independent laser beam pulses test by Institute of Laser Physics

Made by S. Vatnik

Why stand-alone laser module from Endurance lasers is better than the entire machine?

  • Can be hooked to any 3D printer / CNC machine or XY Plotter
  • Does not require a lot of free space
  • Thanks to the z-axis, it always remains in focus

Key advantages of an Endurance DPSS laser module comparing with:

Diode laser –  445 nmCo2 laser – 10,6 uMOther DPSS modules – 1064 nm
Works in impulse mode that generate higher peak power.Has small size dimensions comparing to Co2 tube & does not require complicated beam alignment.An Endurance DPSS laser module has a smaller laser beam spot 57 uM vs. 70-80 uM on average.
Operates in 1064 nm wavelength that enables metal engraving without paste or chemicals.Operates in 1064 nm wavelength that enables metal engraving without paste or chemicals.An Endurance DPSS laser module has a higher impulse peak power 57 kW vs. 20-25 kW on average.
Has a smaller laser beam spot of 20-200 uM vs. 200-400 uM for the diode laser.Can be hooked on any 3D printer or CNC machine, unlike Co2 tube.An Endurance DPSS laser module works without galvo that enables working on a bigger surface.

Key tech features of 10 watt DPSS laser

– Very precise metal engraving with 0.057 mm (57 microns) laser beam spot.
– Ultimate power in an impulse mode – 57 kw.
– It contains an Endurance MO2 PCB as a driver and controller.



Endurance customers make and share



CNC 3018 machine



10 watt DPSS on professional CNC router

10 watt DPSS laser can be easily installed on BEAMO FLUX 30 watt Co2 laser machine



Safety issues. This laser has invisible radiation (1064 nm wavelength is not visible for our eyes) so be very careful while operating the laser. Class 4.

Recommended Protective goggles

1064 nm protective goggles
Always wear protective goggles while you operate the laser or at least add a special protective enclosure since this type of laser is class 4. Wear goggles with OD5+.
(1) Protect wavelength: 740-1100nm or 800-1700nm.
Application: alexandrite, 808 & 980 nm diode lasers, ND:YAG laser protection.
LS-AD: VLT=40%, OD5+ for 740-1100nm | LS-DT: VLT=40%, OD4+ for 800-1700nm
(OD7+ for 780-1070nm) | (OD5+ for 900-1100nm)



Application of the infrared 1064 nm Nd:YAG laser module

Metal engraving and thin metal cutting
Most of the metal material (Gold, Silver, Yellow, Red copper, aluminum, iron, Mirror stainless steel, etc);

Most of the Plastics (PC, PVC, PE, HDPE, ABS, PPR, PET, HIPS, PS, PP, PPO, PA, POM, PMMA, AS, etc), plastic film, print, and package.

Hardware compatibility

Compatible with all 3D printers and CNC machines that have enough space to hook the laser beam emitter.

Our lasers are fully compatible with popular 3D printers and CNC machines: CR-10, Ender 2, Ender 3, MPCNC, X-Carve, Prusa i3, Shapeoko 3, Lutzbot, Acro, Anet A8, Flashforge, Shark, Anycubic i3, Eleksmaker, Wanhao, Tevo, Tronxy, ADIMLab, Robo 3D.



Compatible 3D Printers and CNC Machines
Anet
Anycubic
Creality Cr-10
Eleksmaker
Lulzbot
MakeBlock
Makerbot
MillRight CNC
Monoprice
Openbuilds ACRO
Prusa i3
Reprap
Shapeoko 3
Ultimaker
WanHao
X-Carve
Tevo 3D
FlashForge

Learn more about compatible 3D printers / XY plotters and CNC machine





Software compatibility

Our DPSS laser module can be operated from any software you run to control your 3D printer / CNC machine / XY plotter.

We recommend: an Endurance free plugin to create g-code

T2Laser / Lightburn.



Control

via PWM (5V) TTL wires / analog signal MO2 PCB.

The frequency of a PWM controller (TTL signal) is 25KHz.



A wiring example

Wires come out of the DPSS LaserBox:
Power supply wires
1 – 12V+ wire
2 – 12V- (GND/COM)  wire
3 – Ground wire
PWM cable
4 – PWM (Red) wire
5 – GND (Black wire or bare) wire
Wires to the laser.
Wires “1”, “2”, “3” are connected to the power supply (img2).
To connect according to the diagram (Acorn CNC), you need to disconnect wire “1” from the power supply and connect it to connector “OUT 4” on the ‘Relay Board’. You will need an extra wire to connect the “12V+” connector on the power supply and the ‘E-Stop Switch’. Next, from the ‘E-Stop Switch’, the wire must be connected to the connector “OUT 1” on the ‘Relay Board’. The connectors “OUT 1” and “OUT 4” on the ‘Relay Board’ must be connected as shown in the diagram.
Before connecting the DPSS as shown in the diagram, connect the PWM cable to the controller.
The PWM cable must be connected to a 25-pin connector. Wire “4” (PWM) to pin 14. Wire “5” (GND) to pin 18.
Then check the functionality of DPSS. If DPSS works, then you can start connecting it according to the indicated scheme.

If you have a question about DPSS wiring – please let us know in a LiveChat or email us: [email protected]



Drawing and sizes

DPSSL-w-FAN (Download PDF)

Installing the DPSS Nd:YAG 1064 nm impulse laser on Anet 3D printer (wiring + mounting)



Laser mount

Compatible Endurance mounting brackets. Easy to install!

A custom 3D printed mount

An Endurance Brand New DPSS Laser Module For Metal Marking & Metal Cutting!

An Endurance DPSSL head installed on Ortur frame

Endurance DPSSL on Ortur engraving frame



What goes in the package with 10 watt DPSS laser marking / engraving module

  • DPSS laser module (1064 nm) with 10 watt optical power
  • AC/DC 12V 30A (PSU)
  • Protective goggles for 1064 nm wavelength
  • Arduino for the test (low power)
  • Advanced mounting brackets



Our customers install and share



Extra laser lens pack (F=15, 20, 30, 40 mm lenses)

Tested with AR coating @1064 nm

Laser lens pack for DPSS lasers F20 / 30 / 40 / 50 mm focusing lenses (D = 12.7mm)



Delivery time

Ultra-fast delivery. 3-5 days via DHL express



Learn more about 10 watt DPSS laser module abilities

All you need to know about DPSS Nd:YAG 1064 nm laser modules.



What you can do with a 1064 nm DPSS impulse Nd:YAG laser module



New abilities of an Endurance 10 watt DPSS laser module
