The 2.1 watt (2100 mW) solid-state (diode) laser tool for your 3D printer or CNC mill. Gadget for laser engraving and laser cutting with 445 nm wavelength. Economy laser module

Card image
$169$195
- 14%
Till 11/15/2018

Looking for an affordable engraving / cutting tool?
Want to add new abilities to your 3D printer or CNC machine?


Get your 2.1 watt laser add-on for your 3D printer or CNC machine.
It's easy to run and attach to your 3D printer or CNC mill.
Does not require special knowledge or deep experience.

no need to remove the extruder no need to remove the spindle
Use the same slicers you always use: Cura, Repetier, Slic3r, Simplify3D or CNC software like: Mach3, etc.
To prepare a g-code use an Endurance plugins or T2Laser software.

Would you like to turn your 3D printer into an ultimate laser engraving or cutting machine?
Endurance invented a way to convert your 3D printer or CNC router into a cutting or engraving machine with an Endurance diode laser. Endurance lasers is the best upgrade for your current 3D printer. Expand your 3D printing experience by turning your printer into something you previously didn't have.

The 2.1 watt (2100 mW) diode (solid-state) laser is a basic tool that enables you to engrave and cut a multitude of materials. It is incredibly easy to install and does not require any electronics or mechanical experience to add to your current 3D printer or CNC router. It can be installed on just about any 3D printer or CNC mill. It will not require more than 60 minutes.

Does not require an additional power supply. Works from your FAN or Spindle pin output. With your 2.1 watt laser, you can engrave and cut a variety of materials, such as

  • wood / plywood
  • acrylic
  • PLA / ABS
  • felt / fabric
  • paper / cardboard
  • hardboard / MDF
  • foam
  • fiber cloth / leather
  • and more
Laser Type
Nichia diode
Laser Optical Power Output
2100mW ± 15%
Focal Length
2-10 cm (variable) for 3 element lens | 2-10 mm (variable) for G2 lens
Laser Wavelength
445 nm
Lens Type
3 element long focal lens / G2 short focal lens
Operation Time
Tested 48-72 hours continuous
Voltage
9-16V DC (step-down DC/DC converter available upon request)
Current
1.5-2 Amps
Cooling
Active air blowing
Mount
Universal
Installation Process
Full guidance
Minimum Laser Pixel (spot) Size
0.1 mm (100 uM)
Power adjustment
Additional wire TTL/PWM control (3.5-12V)
Laser Dimensions (W x L x H)
40 x 95 x 40 mm (1.5 x 3.75 x 1.5)''
Laser Weight
150 g (1/3’’ lbs)
Laser Driver
Build-in
Lifetime
10 000 hours
Maintanance
Is not required


About laser driver & laser control board


Laser driver is one of the most important component in the laser module. Laser driver controls the voltage and the current that goes to the laser diode itself. It is important so that the laser driver sets and keeps the voltage and the current stable. It keeps the laser diode safe.

We add Zener diode as an additional laser diode protection.

TTL wire / wires are also added to the laser driver. With TTL you may change laser power (duty ratio). For 2.1 watt we make our own custom based laser drivers.

All Endurance drivers / laser control boards are very reliable and been tested before shipment.

Everything that you need to know about Endurance accessories.

Goggles
always wear red or green goggles when you operate the laser. Remember Endurance lasers are class 4 item and must never be aimed in any live specie.
G2 lens
short focal lens with focal range 2-10 mm (1/10 - 2/5’’) a necessary accessory for laser cutting or laser engraving on metals.
Endurance MO1 PCB
an electronic board that allows feed the laser from external power supply (needed when your main board does not have enough power output)
Laser connectors
variety of a different wires and connectors that will be useful when you plug the laser to your board.
Laser mounts
aluminum mounts that will help you to hook the laser to you machine. 4 types with M3 screws: L, П, I, T.
Laser actuator
a Z axis actuator that will help to change laser position on Z axis. Is a good option for XY plotters with no Z-axis mechanism.
AC/DC 12V5A
an additional power supply for Endurance lasers.
AC/DC 12V1A
an additional power supply for 10 watt laser fans.
Step down DC/DC converter
a DC/DC converter that decreases the voltage down to required 12V for Endurance lasers.
Endurance laser box
is a nice gadget (add-on) for your laser module to measure incoming voltage, outcoming voltage and current on a laser diode, laser driver module, Endurance MO1 PCB, temperature sensor and Arduino board for changing laser power.
Arduino board with an Endurance sketch
allows changing laser power (duty ratio) and a frequency of the laser. Can change the laser into impulsive mode.
Temperature sensor
additional temperature sensor for monitoring of a laser temperature.
Voltmeter
additional voltmeter for measuring incoming voltage.
Voltmeter & ammeter
additional voltmeter & ammeter for measuring outcoming voltage and current that goes to the laser diode.
DIY checking pin kit
a full it that will help you to check pins on your board, laser power, etc.
Air pump
laser addition that allows blowing the air to the place of laser cutting / laser engraving. Increases speed of a laser cutting up to 50% and reduce charring.
TEC module
Peltier cooling system for better laser cooling (increases power up to 10%).

The 2.1 watt (2100 mW) diode laser is very easy to install on almost any 3D printer. We have compatible mounts for the Prusa i3, X-Carve, Creativity Cr-10, Wanhao Duplicator i3, Ultimaker, RepRap, Magnum, Prism, Makerbot Cube, Picasso, Hercules, SolidDoodle, Original Prusa i3 MK2, BCN3D SIGMA, Form 2, PowerSpec 3D Pro, ORD Bot Hadron, Zortrax M200, Kossel, FlashForge Creator Pro, CEL Robox, FDM and others. If you have a printer not listed, please contact us and we will organise a mount for you.

Our lasers are very easy to operate using standard software and run on the existing 9-16V of your printer or router.

In order to create a laser engraving or a laser cut with our 2.1 watt laser all you need to do is put the piece you want to cut or engrave onto the worktop. If you run a 3D printer then just convert a jpeg image into a vector image and then convert it into g-code. We recomend to use inkscape and plugins like Endurance pluging or J Tech Photonics plugin. If you want to use professional software - try T2Laser. Start the machine and enjoy watching it do its job.

If you have any questions we will be happy to assist you any time. Just contact us via email or on our Facebook page.

2.1 watt laser can cut up to 3-4 mm (1/6'') of wood and plywood.

Nice work.

Val
The laser does not work
Please, check the power adapter’s (voltage & current) performance. Connect the TTL wire to the 12V+ to test if the laser is working. It should work full power. Watch this video.
The laser works full power but the laser power cannot be changed
Please check the g-code parameters (S / L) used for the pin to change the power. Either your PWM does not change the duty ratio or the contact of any of the laser connectors (if you run without TTL) is broken. Check with the voltmeter and ammeter if the voltage on this pin changes. Watch a video about TTL signal. Arduino with TTL.
I did everything as described but the laser does not work
We need to see a detailed photo and video of what you have done to help you with further steps.
Sometimes 13N10 or LM338 die and need to be replaced. We will guide you how to do that.
Endurance MO1 PCB does not work
The Endurance MO1 PCB is a quite a simple circuit and works pretty stable, however, there is a simple way to check it out. (described on this page + video guidance)
How do I find a proper pin to connect the laser?
We provide an ultimate guidance and tutorials. The laser is usually connected to the fan output on 3D printers or spindle output on CNC machines or can be connected to any other pin that is controllable, such as: D11 on the Arduino Nano. Detailed pinouts you may find here.
The laser lost its power.
The probability that this might happen is 5%. It might happen due to overheating. Avoid the laser diode and laser control board overheating. Check the temperature of the heatsink or laser driver. They must not be VERY hot (if you can touch these elements and hold on – it means that the temperature is less than 70C). If the temperature rises too high we can guide you how to reduce the voltage going to the laser diode and causing the loss of power.
I am trying to cut 3-5mm plywood using the laser, however I still did not manage to cut it with a single pass. Please assist
0. use a G-2 lens for laser cutting.
1. setup a perfect focus on a G-2 lens (make sure that focal range is something like 4-8 mm)
2. make sure that a plywood is very dry (you may use a 3D printer bed to warm it up)
3. speed parameters should be 50-150 in your g-code
4. make sure that the plywood is not specially treated with anti-inflammable materials
5. make sure that the laser runs full power and you have enough power that goes to the laser
6. make sure that the lens is clean and has no dust on it.

You may cut and engrave using this diode laser

Material Laser cutting
(5-25 passes to cut)
Laser engraving
(speed ~150-250)
Wood / Plywood 2-3 mm +
Acrylic 1-2 mm +
PLA 1-2 mm +
ABS 1-2 mm +
PVC 1-2 mm +
Felt + +
Fabric + +
Paper + +
Cardboard + +
Hardboard + +
Glass - -
Stone - -
Aluminum
(painted and anodized)
- -
Ceramics - -

Our customer support rating

About the product

A 2.1 watt (2100 mW) solid-state (diode) laser tool for your 3D printer or CNC mill. A gadget for laser engraving and laser cutting with 445 nm wavelength. With your 2.1 watt laser, you can engrave and cut a variety of materials, such as plywood / wood, MDF / balsa, аcrylic, PLA / ABS, felt / fabric, paper / cardboard, hardboard and many more.

Power supply

The 2.1 watt laser supports 9 – 16 volts. To operate 24 volts you need an additional step down “buck” converter (available when you place an order). Learn more about useful accessories.

Laser cut and laser engraving pictures

New design of 2.1W (2100 mW) and 3.5W (3500 mW) Endurance lasers (released in Sep 2017)

Laser cutting and laser engraving for home and for business.

Advantages of Endurance lasers


High-quality standard

Multi-level testing system.
Industrial components.


Ultra reliable

The guaranteed duration of the continuous operation ~48-72 hours.


True continuous power output

Our products have the rated power output as advertised – unlike Chinese analogues.


TTL mode

Can be turned on and off with 3.5-12V.
Variable power output.


Plug and play

Universal and compatible mount.
Compatible with most 3D printers and CNC machines.


Friendly return policy

Do not like the laser?
Simply return within 14 days and get a full refund.

Laser attachments and laser engraving (marking) machines.

Why do our customers buy lasers and engraving machines from Endurance?


Real-time advice

We assist and give advice by phone / email / messenger / telegram / whatsapp / viber.


Professional support

We help to install and tune the laser. We offer qualified after-sales support.


Everything you need

We ship everything you need in one parcel to get started.


Immediate delivery

We ship all units within 4-24 hours.


Lifetime warranty

All our lasers are tested and could work up to 10000 hours.


Upgrade option

Do you have an old model? Upgrade your unit with more powerful one.

Our customers install 2.1 watt laser on XY plotters

Compatible 3D Printers and CNC Machines

Anet
Anycubic
Creality Cr-10
Eleksmaker
Lulzbot
MakeBlock
Makerbot
MillRight CNC
Monoprice
Openbuilds ACRO
Prusa i3
Reprap
Shapeoko 3
Ultimaker
WanHao
X-Carve
Tevo 3D
FlashForge

Learn more about compatible 3D printers / XY plotters and CNC machine

What goes in the box?

Everything you need to get started!

Why do our customers buy lasers and engraving machines from us?

  • Assistance in choosing the right laser or engraving machine. We help to qualify customer needs by phone / email / facebook messenger / telegram / whatsapp / viber. Our contact information
  • We provide qualified after-sales support.
  • Our lasers are ready to go.
  • Delivery time from 8 hours. All systems built to order.
  • Lifetime warranty.
  • We provide with video tutorials and guidance.

Laser engraving for you and your business.

Advantages of our lasers

  • Assembled in Russia and in the USA.
  • Reliable. The guaranteed duration of the continuous operation is 48-72 hours.
  • The continuous power output as advertised as opposed to many Chinese analogues.
  • The 2.1 watt laser cuts 1-2 mm of plywood, felt, fabric, acrylic, leather.
  • 2.1 watt laser engraves on leather, acrylic, plastic, plywood, wood, balsa, MDF.

Why our customers buy lasers and engraving machines from Endurance

Got a question?

  1. (required)
  2. (required)
  3. (please, enter a valid email)



A promo video for the 2.1W (2100 mW) diode laser

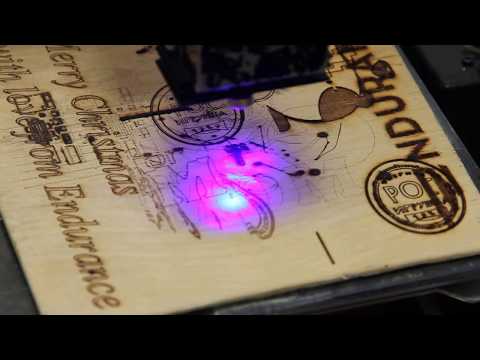

Demo of a 2.1 watt laser
How to connect the laser
A stepper motor (actuator) with a laser
All you need to know about Endurance lasers

Samples of engraving and cutting

Can you make something better?
Share with us your samples or…

Technological advantages of the Endurance lasers

  • Stylish industrial design using light aluminum.
  • Effective cooling system with a custom developed heatsink.
  • True constant power output checked every time before shipment.
  • Very efficient and reliable laser control board.
  • Compatible mounts with most 3D printer & CNC machines.
  • Adjustable laser power via TTL.
  • Preset and tested laser focus.
  • Additional protection of the laser diode.

Add an accessory for your laser

  • Air pump Hailea ACO-318 for cleaner cutting and engraving (less charring).
  • Arduino board for changing a duty ratio (laser power) and frequency (periods of on/off position).
  • TEC cooling system for better laser cooling (increases power up to 10%).
  • Additional metal mounts (easier to hook and mount).
  • Additional laser connectors (all compatible mounts for the main board).
  • Temperature sensor to control the laser temperature.
  • Wi-Fi camera to monitor the laser operation remotely.
  • Voltmeter + ammeter to monitor the laser power consumption in a real time.
  • Additional step-down “buck” DC/DC converter to run 2.1W, 3.5W, 5.6W, 8W, 8.5W lasers from 24V pin.
  • The Endurance MO1 PCB to feed the laser from an external power source.
  • G2 (short focal) lens for better and faster laser cutting and metal engraving.

Endurance provides the best tech support for our customers.

1. Prompt responses explaining about how to connect the laser to your 3D printer/CNC machine or XY plotter (Whatsapp, Viber, Telegram, Facebook messenger, Twitter, Skype, E-mail).
2. Detailed guidance to prepare a G-code for laser cutting/laser engraving (video playlist).
3. Friendly and dedicated Endurance facebook community.
4. Immediate troubleshooting. Remote help with measurements and necessary tests (video call + TeamViewer).
5. Lifetime warranty on all Endurance lasers.
