An Endurance Coherent FAP 800 laser infrared model: 15 watt / 25 watt / 30 / 40 / 50 watt with 808 nm wavelength

Are you looking for a fiber coupler infrared laser attachment for your 3D printer / CNC machine?
Do you want to experience real 15 / 25 / 30 / 40 / 50 watt optical infrared (808 nm) power?


Experience our 15 / 25 / 30 / 40 / 50 Endurance FAP800 Coherent laser attachment.
Engrave on wood, plywood, leather and other materials with high infrared spectrum absorption.
Cut hardboard, cardboard, fabric, wood, plywood and acrylic and other soft materials.

no need to remove the extruder no need to remove the spindle
Use the same slicers you always use: Cura, Repetier, Slic3r, Simplify3D or a CNC software (MACH3, MACH4 etc.)
To prepare a g-code use the Endurance plugins or T2Laser software.
Infinite Abilities Of This Diode Laser
The best tool for fast engraving on soft materials. High power allows doing an ultra - fast laser engraving on big surfaces.
Technical information
Presented below.

What is so great about the Endurance FAP800 Coherent laser module?

  • Made by world famout Coherent company and redesigned by Endurance.
  • New infrared abilities for laser cutting and laser engraving.
  • Portable. Low weight of the module.
  • Compatible with almost all 3D printers / CNC mills.
  • Easy to install and mount.
  • Advanced electonic components.

Everything that you need to know about additional Endurance accessories.

Goggles
always wear red or green goggles when you operate the laser. Remember Endurance lasers are class 4 items and must never be aimed in any live specie.
Laser connectors
variety of a different wires and connectors that will be useful when you plug the laser to your board.
Laser actuator
a Z axis actuator that will help to change laser position on Z axis. Is a good option for XY plotters with no Z-axis mechanism.
AC/DC 12V 5A
an additional power supply for the Endurance laser box x2
AC/DC 12V 1A
an additional power supply for the fans.
Endurance laser box x2
is a nice gadget (add-on) for your laser module to measure incoming voltage, outcoming voltage and current on a laser diode, laser driver module, Endurance MO1 PCB, temperature sensor and Arduino board for changing laser power.
Air pump
laser addition that allows blowing the air to the place of laser cutting / laser engraving. Increases speed of a laser cutting up to 50% and reduce charring.

An Endurance  FAP 800 (Coherent) 808 nm wavelength infrared diode laser with different power output: 15 / 25 / 30/ 40/ 50 watt power



Laser thermal controller board



An Endurance new control box for FAP800 Coherent



Getting started with FAP 800  808 nm wavelength Coherent laser (Endurance upgraded)

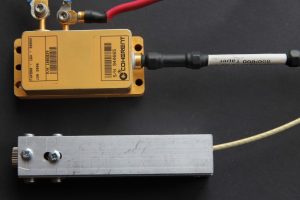

An Endurance FAP800 (COHERENT) 808 nm infrared laser module (TEC cooler, optical system, laser driver with build-in power supply.



Endurance uses FAP 800 infrared (808 nm) Coherent laser modules with different laser output (15 / 25 / 40 / 50 watt) converting them into powerful industrial laser attachments that are compatible with all CNC / plotters and most 3D printers.



Our improvements in the FAP 800 infrared Coherent:

What we added to the FAP 800 Coherent laser control box:

  • AC/DC 2V 30-65A power supply (PSU),
  • Laser controlling driver with PWM signal (3.3-12V),
  • Endurance TEC controller system to keep the temperature around 15C,
  • Dynamic PWM module to change the laser power with a potentiometer,
  • Voltmeter + ammeter to check the laser power.

TEC cooling system

We use  12V 5A x 2 TEC cooling systems that allow keeping the laser module at an efficient temperature ~ 15C and added our own 50x50x100 aluminum heatsink.

Optical system

Endurance FAP 800 Coherent modules are equipped with a G7 laser lens installed in the SMA905 connector.



Technical specs of an Endurance FAP 800 laser module (808 nm wavelength)

Laser module producer: Coherent

Laser type: FAP

Power: 15- 50 W

Consumption: 1.83V, 30А

Laser operating temperature: -20 – 30°C

Cooling: 2 TEC-12706

Laser control: PWM 3.3-12V or control signal 3.5-24V with manual power control

Focusing lens: G7

Focus range from the lens housing: 8-9 mm

Wire length from the control box to the laser head: 1.1 m (~3.6′)

Input voltage: 220-240V (AC)

Control box size: 260 x 220 x 96 mm



Laser beam focusing

Focal range: 8-9 mm

Focal depth: 1-2 mm

Laser beam spot: 200 uM (0.2 mm)



Some nuances about operating the FAP 800 laser unit

After you finished the work with the FAP laser, before turning it off completely, it is recommended to turn off the laser power (green button) and wait 5 minutes for the radiator on the laser to cool down. After that, turn off the power completely (red button).

The “+” power supply feeds the FAP laser module. . The laser head should not have contact with any other metal objects, through which the current can flow. First of all, with the frame of the machine on which it is installed. In the contrary case, the power will be lost, and the machine will stop working.

The user also needs to know that if the temperature indicator does not show anything, then the laser cannot be used, since the Peltier will not turn on and the cooling will not work.

The voltmeter, which shows the voltage across the laser, slightly overestimates the readings, approximately, by  0.2-0.3V. All voltmeters of this type turn out to be like that. The ammeter shows the current correctly.



Getting started with a FAP 800 Endurance – Coherent infrared laser module for your 3D printer / CNC



Laser engraving tests with our an Endurance 808 nm infrared FAP800 Coherent laser module







Inside the Endurance FAP800 Laser Box

FAP800 Coherent laser box (Endurance lasers design)



The control and indication elements on the cover of the FAP and their meanings in my opinion:
1 – General food. — “Power (ON / OFF)”
2 – Laser power supply and Peltier. — “Laser & TEC Power (ON / OFF)”
3 – Volts/amperes on the laser. — “Laser Input”
4 – Volts/amperes per Peltier. —  “TEC Input”
5 – Thermal relay
Current temperature.
Set temperature.
6 – Working with PWM
Mode “0” – work from  PWM directly from the machine
Mode “1” – work from  PWM through the regulator.

7 – Regulator block. I don’t know if it is necessary to separate it and somehow sign it separately.
8 – Regulator modes.
Mode “0” – The regulator is off. Here it is clear “OFF”.
Mode “1” – The laser is always on. The power is set by the regulator.
Mode “2” – Through the PWM wires from the machine, on which there is no PWM, a voltage of 3.5-24V is supplied, through which the laser is turned on. The power is set by the regulator.
9 – The handle of the regulator. I don’t know if I need to sign it.
10 – Power indicator.
11 – LED that turns on when voltage is supplied from the machine through the PWM wires. Works only in mode “2”

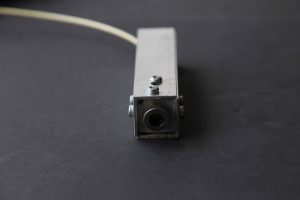

FAP 800 Coherent laser module –  all sizes

Module weight: 261 grams (3/5 pound)



Metal engraving

FAP 800 metal engraving



Engrave (etch) metals

Сupronickel laser engraving



Coherent FAP 800 25 watt laser engraving tests





FAP800 data sheet (specs)

FAP800 15 watt series (V/A/W parameters)
Voltate, VCurrent, AOptical laser power, W
1,6650,02
1,6760,04
1,6870,6
1,6981,24
1,792
1,7102,71
1,71113,3
1,71124
1,72134,7
1,72145,39
1,73156,05
1,73166,7
1,74177,46
1,74188
17,5198,73
1,75209,35
1,762110
1,762210,56
1,762311,11
1,762411,68
1,772512,22
1,772612,78
1,772713,35
1,772814,07
1,782914,53
1,783015,11
1,783115,4
1,793216



Endurance helps you with an upgrade of your 3D printer and CNC machine into powerful laser cutting and engraving machines. Now available powerful and invisible NIR laser beam.



In April 2021 we have started to deliver a powerful infrared 808 nm diode fiber-coupled laser for 3D printer makers and CNC professionals. This unit opens completely new abilities to one who is interested in infrared laser modules.

An Endurance Coherent FAP 800 laser infrared model: 15 watt / 25 watt / 30 / 40 / 50 watt with 808 nm wavelength

Special warranty policy for the FAP800 Coherent laser module

No warranty is applied to the Coherent FAP800 laser module.
No warranty is applied to the fiber.
Inaccurate and false usage might cause a fire and an explosion inside the fiber.
Never leave an Endurance Coherent FAP800 unit unattended!





Abilities of the  FAP 800 Coherent laser module

The Endurance Coherent FAP800 laser module is an infrared fiber-coupled module that enables laser cutting and laser engraving. It has a specific 808 nm wavelength – quite seldom for laser module attachments in addition to high power it opens some new abilities for your 3D printer / CNC mill.
There are 3 different modifications with 5 different laser power outputs: 15 watt / 25 watt / 30 watt / 40 watt / 50 watt.
The Endurance Coherent FAP8000 unit can engrave on almost any surface and is good for laser cutting of white and transparent materials.







Imagine & Create!

G-code parameters that were used for laser engraving

MaterialAmount of passesPowerSpeed mm / min
MDF299%100
Cardboard199%200
PLA plastics199%200
Dark plastics199%200
Acrylic199%500
Metalized rubber199%50
Foam cardboard199%1000



Compatible 3D Printers and CNC Machines
Anet
Anycubic
Creality Cr-10
Eleksmaker
Lulzbot
MakeBlock
Makerbot
MillRight CNC
Monoprice
Openbuilds ACRO
Prusa i3
Reprap
Shapeoko 3
Ultimaker
WanHao
X-Carve
Tevo 3D
FlashForge

Learn more about compatible 3D printers / XY plotters and CNC machine



Laser cutting and laser engraving for home and for business
Advantages of Endurance lasers


High-quality standard

Multi-level testing system.
Industrial components.


Ultra reliable

The guaranteed duration of the continuous operation ~48-72 hours.


True continuous power output

Our products have the rated power output as advertised – unlike Chinese analogues.


TTL mode

Can be turned on and off with 3.5-24V.
Variable power output.


Plug and play

Universal and compatible mount.
Compatible with most 3D printers and CNC machines.


Friendly return policy

Do not like the laser?
Simply return within 30 days and get a full refund.



Laser attachments and laser engraving (marking) machines
Why do our customers buy lasers and engraving machines from Endurance?


Real-time advice

We assist and give advice by Phone / Email / Facebook messenger / Telegram / Whatsapp / Viber.


Professional support

We help to install and tune the laser. We offer qualified after-sales support.


Everything you need

We ship everything you need in one parcel to get started.


Immediate delivery

We ship all units within 4-24 hours. DHL express delivery allows you to get the package in 3-5 days.


Lifetime warranty

All our lasers are tested and could work up to 10000 hours.


Upgrade option

Do you have an old model? Upgrade your unit with more powerful one.



Dependence of laser power on voltage and current for 35 watt power laser module

Voltage, VCurrent, AOptical laser power, W
1,67711,20,3
1,681121,1
1,68512,82
1,68813,52,9
1,69114,23,6
1,69414,94,5
1,69715,65,3
1,716,36,2
1,70217,17
1,70517,97,9
1,70718,68,7
1,7119,39,6
1,7122010,5
1,71420,811,3
1,71621,512
1,71822,212,8
1,722313,6
1,72223,814,4
1,72424,515,3
1,72625,316,1
1,7282616,9
1,72926,817,7
1,73227,618,5
1,73328,319,2
1,73429,119,9
1,73629,920,6
1,73830,621,4
1,73931,322,2
1,7432,122,9
1,74232,823,8
1,74333,524,5
1,74434,325,3
1,7463526
1,74735,826,8
1,74836,627,5
1,7537,428,2
1,75138,129
1,75238,929,5
1,75439,630,3
1,75540,431,1
1,75641,131,9
1,75741,832,7
1,75842,633,2
1,75943,334
1,7644,234,7
1,7614535,3
